Specifications
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 4MP (2560×1440) |
| Min. illumination | Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Lens | |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm (8 to 32 mm optional) |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7° 8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5° |
| Focus | Auto, Semi-auto, Manual |
| Iris Type | Auto-iris |
| Aperture | 2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | 2.8 to 12 mm: Up to 30 m 8 to 32 mm: Up to 50 m |
| Smart Supplement Light | Yes |
| Video and Audio | |
| Streaming Capability | Multiple streaming (3 Streams) |
| Main Stream | Performance mode: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Proactive mode: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | Performance mode: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Proactive mode: 50 Hz: 12.5 fps (640 × 480, 640 × 360) 60 Hz: 15 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 1 fps (1280 × 720, 640 × 480) 60 Hz: 1 fps (1280 × 720, 640 × 480) |
| Video Compression | Main stream: H.264/H.265 Sub-stream: H.264/H.265/MJPEG Third Stream: H.265/H.264 *Performance mode: main stream supports H.264+, H.265+ |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for main stream |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (S/G/T), SDK, OTAP |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3 |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Mobile Communication | |
| SIM Card Type | MicroSIM |
| Frequency | LTE-TDD: Band38/40/41 LTE-FDD: Band1/3/5/7/8/20/28 WCDMA: Band1/5/8 GSM: 850/900/1800 MHz |
| Standard | LTE-TDD/LTE-FDD/WCDMA/GSM |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, Defog, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Audio | 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 12 VDC, 1 A) |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB, Built-in 256 GB eMMC storage (256 GB device model supports), Built-in 512 GB SSD storage (512 GB device model supports), Built-in 1 TB SSD storage (1 TB device model supports) |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Reset Key | Yes |
| Power Output | 12 VDC, max. 1000 mA |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, face detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning |
| General | |
| Power | 12 VDC ± 20%, 4-pin M8 waterproof connector 1 TB/512 GB device model: 1. Standby power consumption: 45 mW 2. The average power consumption of 24 hours (4G transmission is excluded): 4.5 W 3. The max. power consumption: 20 W (6 W if without 12 V load) Other device model: 1. Standby power consumption: 45 mW 2. The average power consumption of 24 hours (4G transmission is excluded): 3 W 3. The max. power consumption: 18 W (6 W if without 12 V load) |
| General Function | Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter |
| Material | Front cover: metal, body: metal, bracket: metal |
| Dimension | 816.2 mm × 735.9 mm × 760 mm (32.1" × 28.9" × 29.9") (Max. size of the camera after it is completely assembled) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Package Dimension | 862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30.0") |
| Weight | Approx. 26.450 kg (58.3 lb.) |
| With Package Weight | Approx. 32.715 kg (72.1 lb.) |
| Storage Conditions | -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP66 |
| Battery | |
| Battery Type | Lithium |
| Battery Voltage | 10.8 V |
| Capacity | 360 Wh (90 Wh for each battery) |
| Max. Output Voltage | 12.6 V |
| Operating Temperature | Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F) |
| Cycle Lifetime | Proactive mode: 8 days, Standby mode: 80 days *in cloudy/rainy days (25 °C) |
| Battery Life | More than 500 cycles |
| Battery Weight | Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery) |

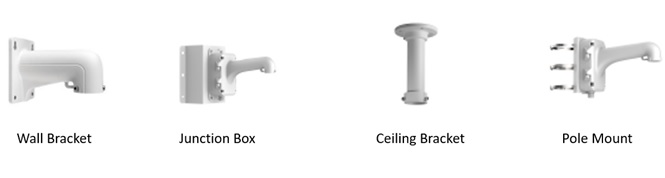

Accessories (Optional)
